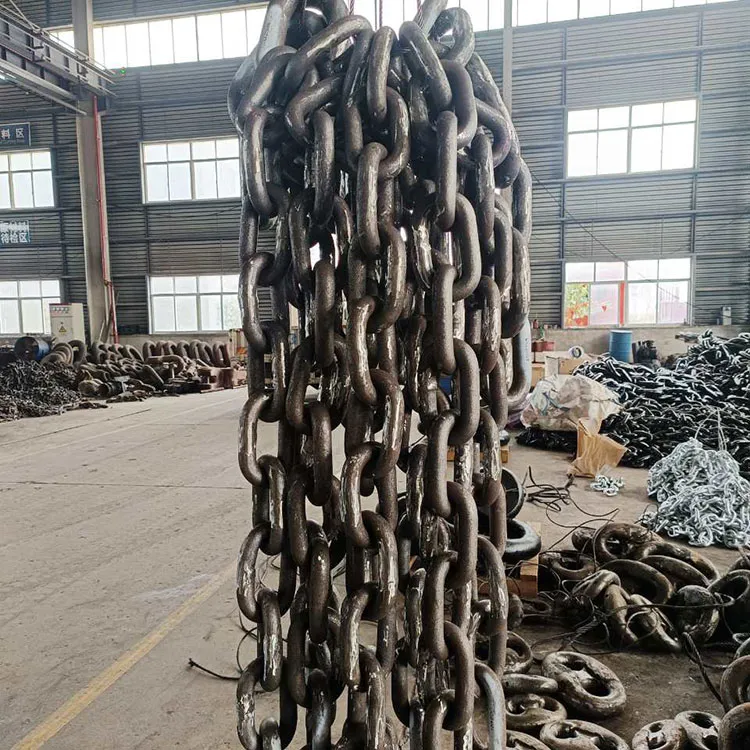

Çivili Çapa Zinciri

CCS, LR, ABS, BV, IRS ve diğer sınıflandırma kuruluşları sertifikalarıyla her türlü deniz çapa zincirini sağlıyoruz. Zincirlerimiz saplama bağlantılı çapa zincirine, saplamasız çapa zincirine, paslanmaz çelik çapa zincirine ve bağlantı zincirine vb. bölünmüştür.

Talep Gönder

Ürün Açıklaması

Çivili Çapa Zinciri

Nominal spesifikasyon d mm	l10	w7	Rütbe
			BM1		BM2		BM3		BM4		kg/m
			KIRILMA YÜK	KANITLANMIŞ YÜK	KIRILMA YÜK	KANITLANMIŞ YÜK	KIRILMA YÜK	KANITLANMIŞ YÜK	KIRILMA YÜK	KANITLANMIŞ YÜK	kg/m
6	36	22	13.3	6.6	18.6	9.3	/		/		0.72
7	42	25	18.1	9	25.2	12.6					0.98
8	48	29	23.7	11.8	33	18.5					1.28
9	54	32	30	14.9	41.8	20.9					1.62
10	60	36	37	13.4	51.6	25.8					2
11	66	40	44.7	22.6	62.4	31.2					2.42
12.5	75	45	57.8	28.8	82.6	41.2					3.12
14	84	50	69.9	34.8	101.9	51					3.92
16	96	58	94.7	47.1	132.3	66.2	184.8	92.4			5.12
17.5	105	63	113.3	56.4	157.8	78.9	221.2	110.6			6.12
19	114	68	133.7	66.4	187.2	93.6	260.6	130.3			7.22
20.5	123	74	155.5	77.3	217.3	108.6	303.4	151.7			8.4
22	132	79	179.1	89.1	250.9	125.4	349.4	174.7			9.67
24	144	86	213.3	106	298.9	149.9	415.8	207.9			11.51
26	156	94	250.1	124.4	350.8	175.4	488	244			13.51
28	168	101	290.1	144.3	406.7	203.8	566	283			15.67
30	180	108	333	165.6	467.5	234.2	649.8	324.9	933	652	17.99
32	192	115	378.9	188.4	531.2	265.6	739.3	369.6	1057	739	20.47
34	204	122	427.7	212.7	599.8	299.9	834.6	417.3	1189	831	23.11
36	216	130	479.5	238.5	672.3	336.1	935.7	467.8	1327	928	25.9
38	228	137	534.3	265.7	748.7	374.4	1042.5	521.3	1473	1030	28.86
40	240	144	592	294.4	829.1	414.5	1155.2	577.6	1626	1136	31.98
42	252	151	652.7	324.6	915.3	457.7	1273.6	636.8	1786	1248	35.26
44	264	158	716.3	356.2	999.6	502.7	1397.8	698.9	1952	1364	38.7
46	276	166	782.9	389.3	1097.6	548.8	1527.8	763.9	2125	1485	42.3
48	288	173	852.5	423.9	1195.6	597.8	1663.5	831.7	2304	1610	46.05
50	300	180	926.1	460	1293.6	648.8	1805	902.5	2490	1740	49.97
52	312	177	/		1393.6	696.8	1944.5	972.2	2683	1875	54.05
54	324	184			1496.8	748.4	2088.5	1044.3	2882	2014	58.29
56	336	191			1603.2	801.6	2237	1118.5	3086	2157	62.68
58	348	198			1712.8	856.4	2390	1195	3297	2304	67.24
60	360	204			1825.5	912.8	2547.2	1273.6	3514	2456	71.96
62	372	211			1941.3	970.7	2708.8	1354.4	3737	2612	76.84.
64	384	218			2060.1	1030.1	2874.5	1437.3	3966	2771	81.87
66	396	225			2181.8	1090.9	3044.4	1522.2	4200	2935	87.07
68	408	232			2306.5	1153.3	3218.3	1609.2	4440	3103	92.43
70	420	238			2434	1217	3396.3	1698.2	4686	3274	97.94
73	438	248			2630.6	1315.3	3670.6	1835.3	5064	3539	106.52
76	456	239			2833.3	1416.7	3953.4	1976.7	5454	3812	115.45
78	468	266			2971.8	1485.9	4146.7	2073.3	5721	3998	121.61
81	486	276			3184.4	1592.2	4443.4	2221.7	6130	4284	131.14
84	504	286			3402.8	1701.4	4748	2374	3550	4578	141.04
87	522	296			3626.7	1813.3	5060.4	2530.2	6981	4879	151.29
90	540	306			3856	1928	5380.3	2690.2	7423	5187	161.91
